DTM Series

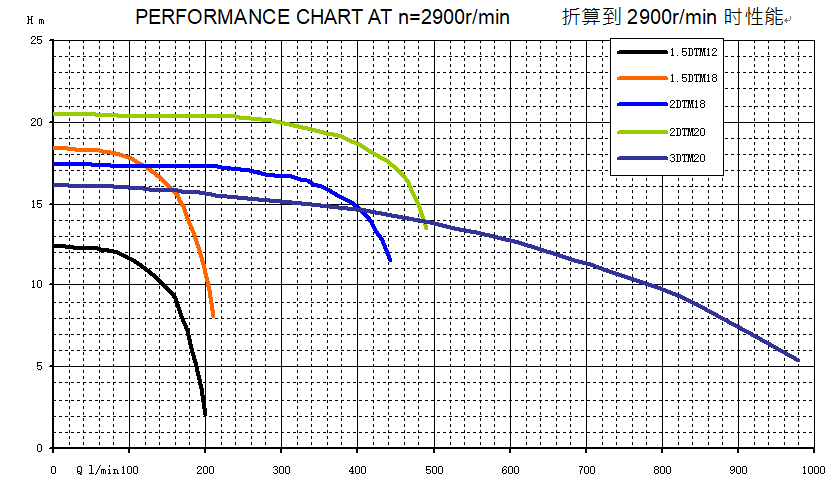

DTM series are single stage centrifugal pumps, suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. The hydraulic characteristic is with higher head and smaller capacity.

Standard data and equipment: single phase 220V/50Hz, brass impeller, carbon steel motor shaft, with motor protector inside.

Others model and material such as three phase, 110V, 60Hz, dual voltage, stainless steel shaft, etc, will be available upon request.

Warranty: 12 months

Working Conditions

Max Temperature of Fluid up to +80℃

Max Pressure 10bar,

Max Ambient Temperature up t 40℃

Should be installed in a covered area, protected against the weather.
